| Frame Size | TT | Rider Area |
CS min |
LR | FH | Tires | AF | SA | BBH | BB type |
HT | HT type |
SPL | SP | Dropout type |
Max Tires Clearance |
Brake type |
Weight |
| 20″ | ||||||||||||||||||
| Mini | 18″ 457.2mm |
20.4″ 517.82mm |
12.76″ 324mm |
1.5″ 38.1mm |
12.1″ 307mm |
Front: 20×1-1/8″ Rear: 20×1-1/8″ |
73° | 70° | 10.6″ / 269.4mm | Euro BSA 68mm |
4.5″ 115mm |
Integrated IS 42/42 |
8.5″ 215.9mm |
Aero 25.4mm |
Enclosed 3/8″ – 10mm |
20×1-1/8″ | Post or Flat mount 120/140mm |
NC |
| Junior | 19″ 482.6mm |
21.2″ 537.34mm |
13″ 38.1 mm |
1.5″ 38.1mm |
12.1″ 307mm |
Front: 20×1-1/8″ Rear: 20×1-1/8″ |
73° | 70° | 10.6″ / 269.4mm | Euro BSA 68mm |
4.5″ 115mm |
Integrated IS 42/42 |
8.8″ 223.52mm |
Aero 25.4mm |
Enclosed 3/8″ – 10mm |
20×1-1/8″ | Post or Flat mount 120/140mm |
NC |
| Expert | 19.5″ 495.3mm |
21.5″ 546.57mm |
13.25″ 38.1 mm |
1.5″ 38.1mm |
12.1″ 307mm |
Front: 20×1-3/8″ Rear: 20×1-3/8″ |
73.4° | 70.4° | 11″ / 279.4mm | Euro BSA 68mm |
4.7″ 120mm |
Integrated IS 42/42 |
8.8″ 223.52mm |
Aero 25.4mm |
Enclosed 3/8″ – 10mm |
20×1-3/8″ | Post or Flat mount 120/140mm |
NC |
| Expert XL | 20″ 508mm |
21.6″ 549.18mm |
13.5″ 342.9mm |
1.5″ 38.1mm |
12.1″ 307mm |
Front: 20×1.6″ Rear: 20×1.4″ Rear: 20×1.6″ |
– 73° 75.5° |
– 70° 72.1° |
– 11″ / 279.4mm 11.95″ / 303.7mm |
Press Fit BB86 |
4.5″ 115mm |
Integrated IS 42/52 |
8.8″ 223.52mm |
Aero 27.2mm |
Enclosed 3/8″ – 10mm |
20×2.10″ | Post or Flat mount 120/140mm |
NC |
| Pro | 20.5″ 520.7mm |
22.2″ 564.24mm |
14.25″ 361.95mm |
1.5″ 38.1mm |
12.1″ 307mm |
Front: 20×1.75″ Rear: 20×1.6″ Rear: 20×1.75″ |
– 74° 74.6° |
– 72.5° 73.1° |
– 11.5″ / 292.1mm 11.74″ / 298.3mm |
Press Fit BB86 |
4.7″ 120mm |
Integrated IS 42/52 |
9.3″ 236.2mm |
Aero 27.2mm |
Enclosed 3/8″ – 10mm |
20×2.10″ | Post or Flat mount 120/140mm |
NC |
| Pro + | 20.75″ 527.05mm |
22.4″ 569.32mm |
14.3″ 361.95mm |
1.5″ 38.1mm |
12.1″ 307mm |
Front: 20×1.75″ Rear: 20×1.6″ Rear: 20×1.75″ |
– 74° 74.6° |
– 72.5° 73.1° |
– 11.5″ / 292.1mm 11.74″ / 298.3mm |
Press Fit BB86 |
4.7″ 120mm |
Integrated IS 42/52 |
9.3″ 236.2mm |
Aero 27.2mm |
Enclosed 3/8″ – 10mm |
20×2.10″ | Post or Flat mount 120/140mm |
NC |
| Pro XL | 21″ 533.4mm |
22.6″ 574.45mm |
14.25″ 361.95mm |
1.5″ 38.1mm |
12.1″ 307mm |
Front: 20×1.75″ Rear: 20×1.6″ Rear: 20×1.75″ |
– 74° 74.6° |
– 72.5° 73.1° |
– 11.5″ / 292.1mm 11.74″ / 298.3mm |
Press Fit BB86 |
4.7″ 120mm |
Integrated IS 42/52 |
9.3″ 236.2mm |
Aero 27.2mm |
Enclosed 3/8″ – 10mm |
20×2.10″ | Post or Flat mount 120/140mm |
NC |
| Pro XL + | 21.25″ 539.75mm |
22.8″ 579.6mm |
14.5″ 368.3mm |
1.5″ 38.1mm |
12.1″ 307mm |
Front: 20×1.75″ Rear: 20×1.6″ Rear: 20×1.75″ |
– 74° 74.6° |
– 72.5° 73.1° |
– 11.5″ / 292.1mm 11.74″ / 298.3mm |
Press Fit BB86 |
4.7″ 120mm |
Integrated IS 42/52 |
9.3″ 236.2mm |
Aero 27.2mm |
Enclosed 3/8″ – 10mm |
20×2.10″ | Post or Flat mount 120/140mm |
NC |
| Pro XXL | 21.5″ 546.1mm |
23″ 584.75mm |
14.5″ 368.3 mm |
1.5″ 38.1mm |
12.1″ 307mm |
Front: 20×1.75″ Rear: 20×1.6″ Rear: 20×1.75″ |
– 74° 74.6° |
– 72.5° 73.1° |
– 11.5″ / 292.1mm 11.74″ / 298.3mm |
Press Fit BB86 |
4.7″ 120mm |
Integrated IS 42/52 |
9.3″ 236.2mm |
Aero 27.2mm |
Enclosed 3/8″ – 10mm |
20×2.10″ | Post or Flat mount 120/140mm |
NC |
| Pro XXL + | 21.75″ 552.45mm |
23.2″ 589.96mm |
14.8″ 374.65mm |
1.5″ 38.1mm |
12.1″ 307mm |
Front: 20×1.75″ Rear: 20×1.6″ Rear: 20×1.75″ |
– 74° 74.6° |
– 72.5° 73.1° |
– 11.5″ / 292.1mm 11.74″ / 298.3mm |
Press Fit BB86 |
4.7″ 120mm |
Integrated IS 42/52 |
9.3″ 236.2mm |
Aero 27.2mm |
Enclosed 3/8″ – 10mm |
20×2.10″ | Post or Flat mount 120/140mm |
NC |
| Pro XXXL | 22″ 558.8mm |
23.4″ 595.15mm |
15″ 381mm |
1.5″ 38.1mm |
12.1″ 307mm |
Front: 20×1.75″ Rear: 20×1.6″ Rear: 20×1.75″ |
– 74° 74.6° |
– 72.5° 73.1° |
– 11.5″ / 292.1mm 11.74″ / 298.3mm |
Press Fit BB86 |
4.7″ 120mm |
Integrated IS 42/52 |
9.3″ 236.2mm |
Aero 27.2mm |
Enclosed 3/8″ – 10mm |
20×2.10″ | Post or Flat mount 120/140mm |
NC |
| OS 20″ | ||||||||||||||||||
| OS Pro XXL | 21.5″ 546.1mm |
23.8″ 604.46mm |
14.5″ 368.3mm |
1.5″ 38.1mm |
13.2″ 334.5mm |
Front: OS20x1.85″ Rear: OS20x1.6″ Rear: OS20x1.85″ |
– 74° 74.4° |
– 72.5° 72.9° |
– 11.5″ / 292.1mm 11.67″ / 296.4mm |
Press Fit BB86 |
4.7″ 120mm |
Integrated IS 42/52 |
10″ 252.73mm |
Aero 27.2mm |
Enclosed 3/8″ – 10mm |
OS20x1.85″ | Post or Flat mount 120/140mm |
NC |
| OS Pro XXXL | 22″ 558.8mm |
24.2″ 614.39mm |
15″ 381mm |
1.5″ 38.1mm |
13.2″ 334.5mm |
Front: OS20x1.85″ Rear: OS20x1.6″ Rear: OS20x1.85″ |
– 74° 74.4° |
– 72.5° 72.9° |
– 11.5″ / 292.1mm 11.67″ / 296.4mm |
Press Fit BB86 |
4.7″ 120mm |
Integrated IS 42/52 |
10″ 252.73mm |
Aero 27.2mm |
Enclosed 3/8″ – 10mm |
OS20x1.85″ | Post or Flat mount 120/140mm |
NC |
| 24″ | ||||||||||||||||||
| Pro Cruiser | 21.5″ 546.1mm |
24.4″ 619.26mm |
14.7″ 374.58mm |
1.5″ 38.1mm |
14″ 355mm |
Front: 24×1.75″ Rear: 24×1.6″ Rear: 24×1.75″ |
– 74° 74.3° |
– 71° 71.3° |
– 11.8″ / 299.72mm 11.92″ / 302.76mm |
Press Fit BB86 |
4.7″ 120mm |
Integrated IS 42/52 |
10.6″ 269.24mm |
Aero 27.2mm |
Enclosed 3/8″ – 10mm |
24×2.10″ | Post or Flat mount 120/140mm |
NC |
| Pro + Cruiser | 22″ 558.8mm |
24.8″ 628.7mm |
14.7″ 374.58mm |
1.5″ 38.1mm |
14″ 355mm |
Front: 24×1.75″ Rear: 24×1.6″ Rear: 24×1.75″ |
– 74° 74.3° |
– 71° 71.3° |
– 11.8″ / 299.72mm 11.92″ / 302.76mm |
Press Fit BB86 |
4.7″ 120mm |
Integrated IS 42/52 |
10.6″ 269.24mm |
Aero 27.2mm |
Enclosed 3/8″ – 10mm |
24×2.10″ | Post or Flat mount 120/140mm |
NC |

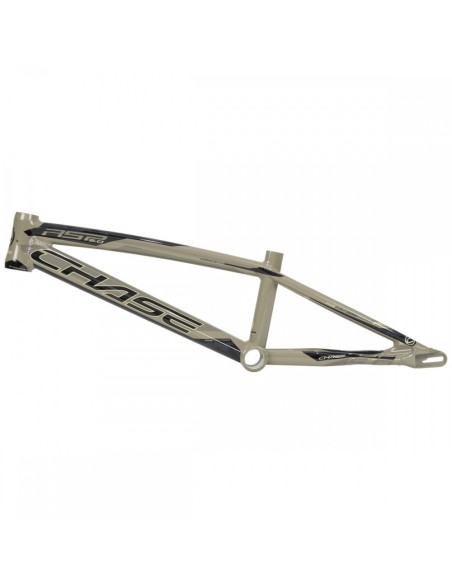

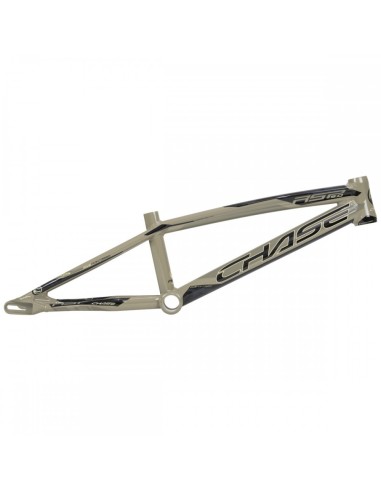

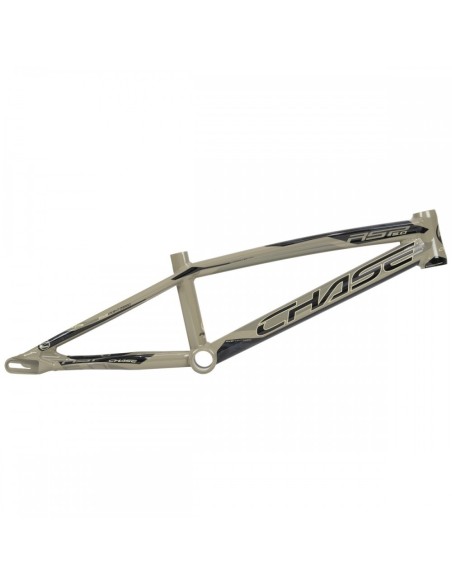

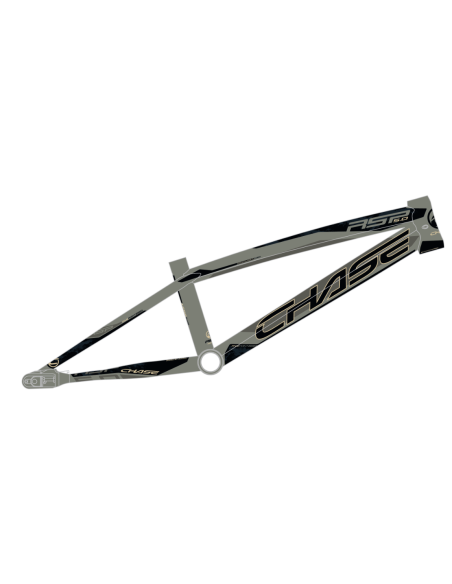

Cadre CHASE RSP 5.0 DIRT SAND
Le cadre CHASE RSP 5.0 est l'aboutissement de toutes des mises à niveau du moment pour en faire notre meilleur cadre en aluminium à ce jour. Reprenant toujours la géométrie gagnante utilisée depuis des années par les pilotes pros Connor Fields et Joris Daudet, il est conçu exclusivement pour un...
Plus d'infos
INFORMATIONS
Le cadre CHASE RSP 5.0 est l'aboutissement de toutes des mises à niveau du moment pour en faire notre meilleur cadre en aluminium à ce jour. Reprenant toujours la géométrie gagnante utilisée depuis des années par les pilotes pros Connor Fields et Joris Daudet, il est conçu exclusivement pour un freinage à disque et ses pattes ont été optimisées, offrant maintenant un meilleur dégagement pour un large éventail d'étriers de freins à disque Post mount et Flat mount.
CARACTERISTIQUES :
• Cadre Alumium 7005 T6 (Premium Ultralight)
• Tube supérieur hydroformé double butted
• Tube inférieur hydroformé triple butted
• Tube de selle à profil « Aero shape system »
• Haubans arrières « muscle forming »
• Nouveau routage de câble interne
• Compatible exclusivement pour un freinage par disque Post Mount et flat mount

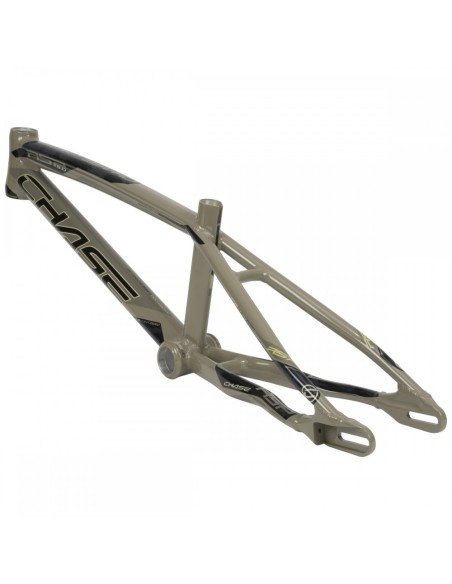

• Nouvelles pattes arrières fermées usinées CNC pour offrir un meilleur dégagement pour un large éventail d'étriers de freins à disque

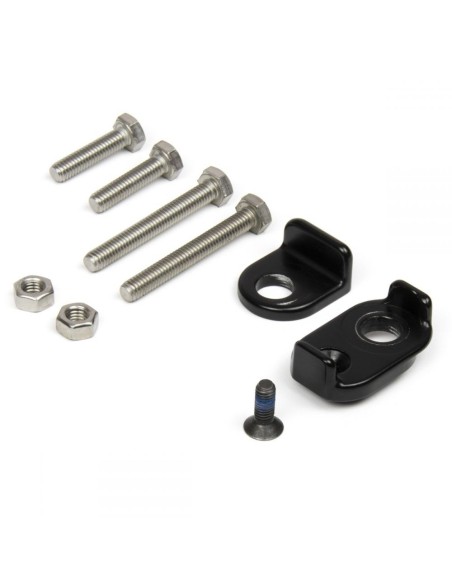

• Vendu avec tendeurs intégrés pour axe 10mm compatible uniquement avec moyeux à axe femelle, gaine interne
• Vendu séparément : Collier et tige de selle AERO, Adaptateur de frein à disque
de Mini à Expert
• Douille de direction intégrée IS 42/42
• Boîtier Euro BSA 68x73mm
• Compatible avec collier et tige de selle AERO 25.4mm
de Expert XL à Cruiser Pro+ et tailles OS20
• Douille de direction intégrée conique IS 42/52
• Boîtier Press Fit 86x92mm
• Compatible avec collier et tige de selle AERO 27.2mm
COMPATIBILITÉ :
• Direction intégrée 1-1/8’’ (de Mini à Expert)
• Direction intégrée conique Haut 1-1/8’’ - Bas 1.5’’ (à partir de Expert XL)
• Boitier de pédalier Euro BSC/BSA (de Mini à Expert)
• Boitier de pédalier Press Fit BB86 (à partir de Expert XL)
Head Tube Angles and BB height will vary buy the fork and tires used when Measuring. We have updated our angles to be exact when using a IKON Carbon Fork or ELEVN Cromo Fork (OS20) as well as used TIOGA Fastr or PowerBlock tires to give you the true angels and measurements. Usage of other forks and tires will give you a + or – of Heights and Angles.
